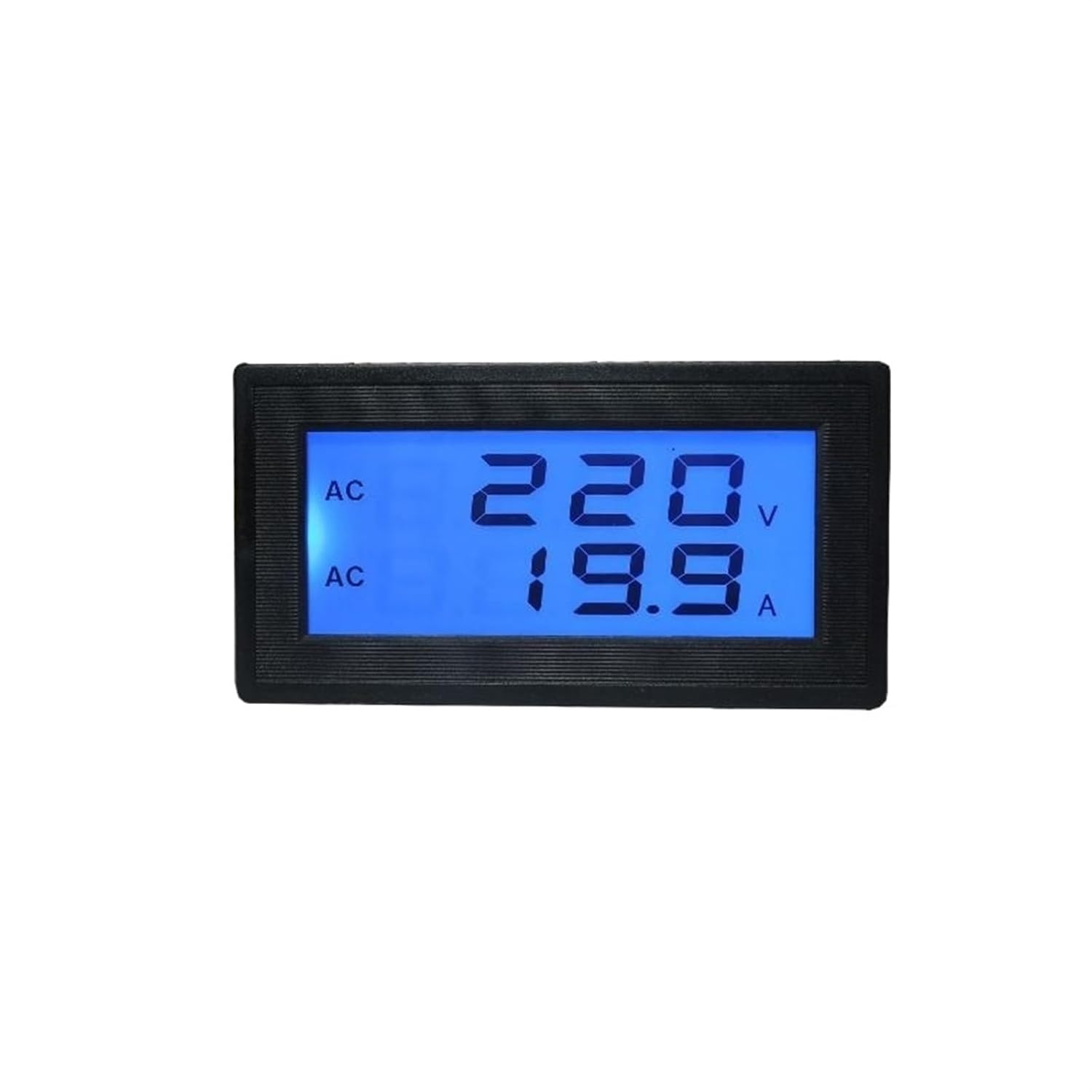

5130DVA LCD Digital Voltmeter Ammeter Voltage Ampere Meter AC60-500V 10A 30A 50A 100A 200A 500A 1000A CT Volt Amp Panel Tester(AC50A (Split))

AmmetersAttention:1.Split and Open-closed type:Green teminal is connected with CT;Black teminal is connected with AC testing voltage.Don't connect wrongly,or it will be burnt.2.This meter is designed on the principle of capacitor step-down, because the higher the frequency, the smaller the impedance of the capacitor, it is not suitable for high frequency electronic speed regulation, non-mains sine wave frequency, or other occasions with high frequency components, otherwise it will be burnt !3.When choosing ranges, it is not the larger the better.The larger the range, the greater the error.Therefore, 1.5 or 2 times the actual test value is recommended.Technical Parameters:Power supply:AC60-500V<;200mATest voltage:AC60-500VTest current: AC0-10A/30A/50A/100A/200A/500A/1000ADimension:79*43*15 mmMounting hole:76*39.5mmDisplay mode: LCD digital with blue backlightMeasurement accuracy: 1%(+/- 2 digits)Measurement rate: 2 times/SThe length of split CT wire: 100mm(Except 1000A)<;0.2VAFeature:AC voltage and current simultaneously by LCD.Low power consumption.With a back cover,safe to use.Twowires system,no additional power supply,directly for the test voltage.Including one independent small precise current (CT), you can lengthen the cable.Easy measurement, just connect to power and lead the wire through the current (CT).Wide measurement voltage and current range.Specification:Connection Diagram:Working conditions:Operating temperature:-10~50 degreesWorking humidity:10~80% (No condensation)Working pressure:80~106kPaSun exposure:No direct exposure
