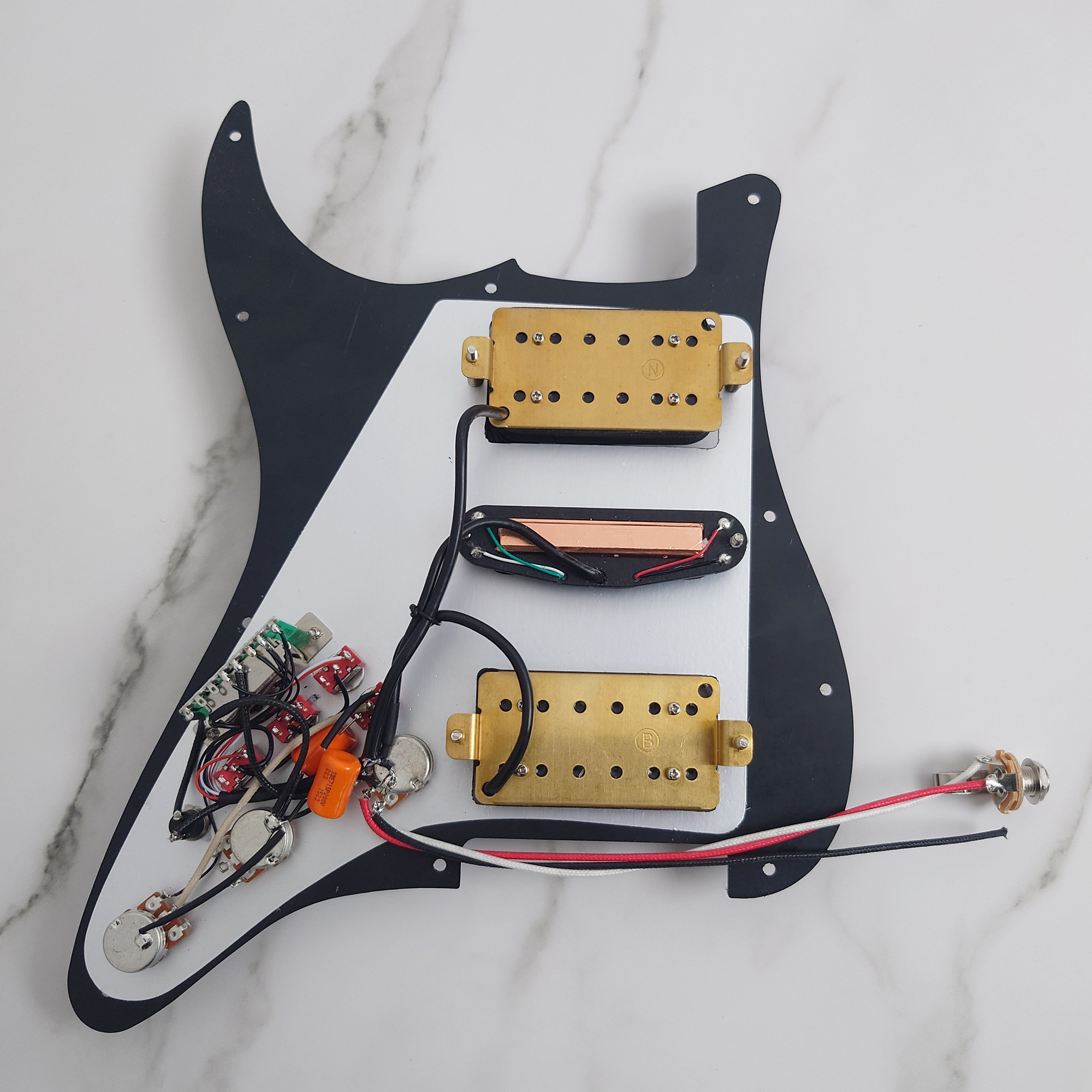

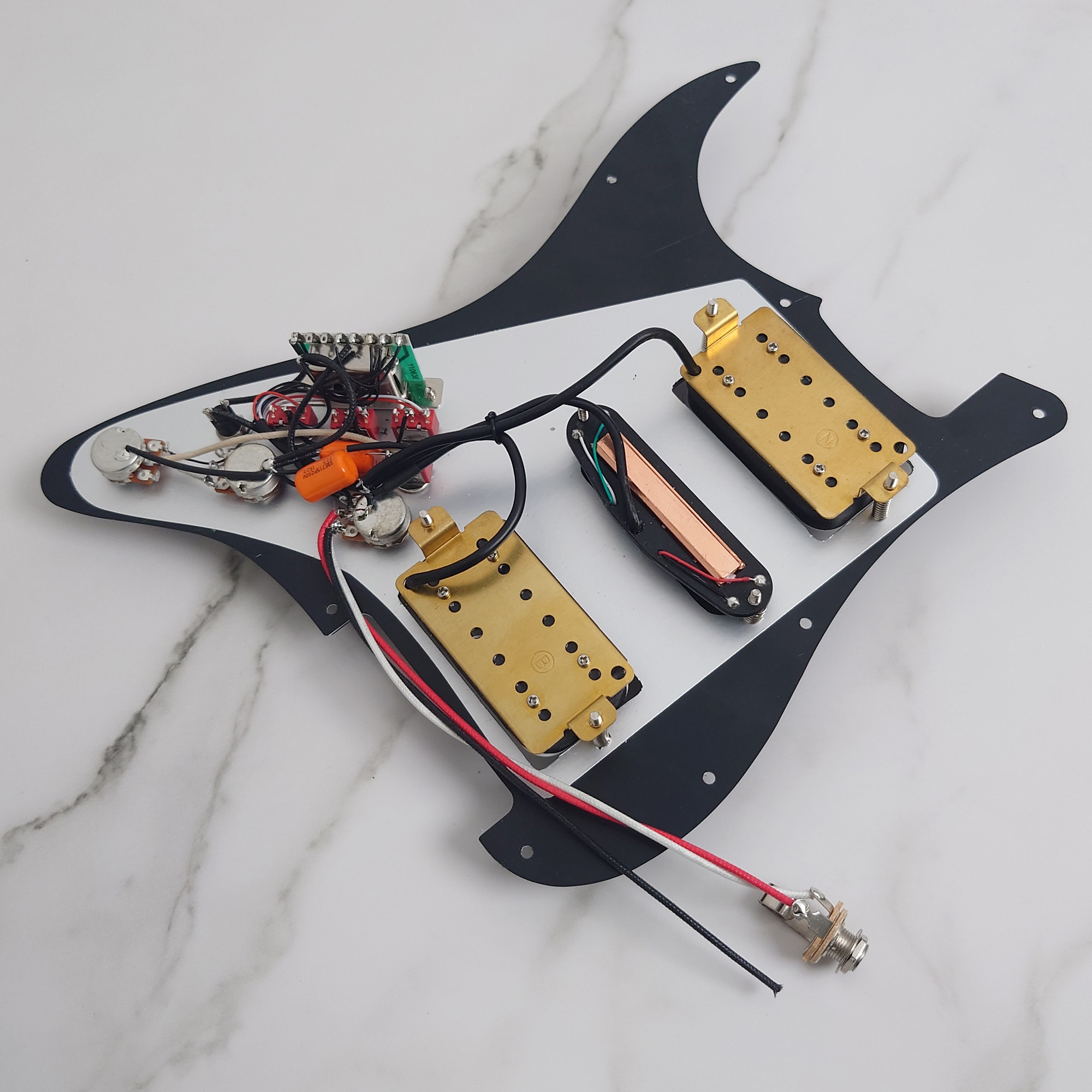

HSH Prewired Loaded Pickguard, with Alnico 5 Humbucker & Single coil Pickups, for Fender Strat Guitar

Product Description: Model No.: Upgraded HSH pre-wired guitar pickup guard set Material: Alnico 5 pickups, imported copper wire Pickup Specifications: Neck pickup: Alnico 5 humbucking pickup, DC resistance about 7.5KΩ, hole spacing 50mm Center pickup: Single coil pickup, DC resistance about 9.8KΩ, hole spacing 52mm Bridge pickup: Alnico 5 humbucker, DC resistance about 14KΩ, hole spacing 52mm (Note: resistance values are for reference only and may vary slightly with temperature) Electronic components: Potentiometer: 3× CTS 500K Switches: 4 × single-cut switch; 1 × enhanced function switch Capacitors: 2 × orange capacitors Output jack: 1 × output jack Range of use: Suitable for most ST type guitars, easy to install, just solder the reserved wiring to the guitar spring claw. Weight: Approx. 700g/set Accessories: Includes 11 mounting screws Important Notice: The product is covered with a protective film to prevent scratches and damage. Be sure to remove the protective film before installing it on your guitar. Additional Features Description: 5-speed switch 1st position: only the neck pickup works. When the Enhancement switch is pressed, the neck and bridge pickups will operate simultaneously. 5-Speed Switch Second: The neck and center pickups will operate simultaneously. The neck, middle and bridge pickups will operate simultaneously when the Enhancement switch is pressed. INDIVIDUAL SINGLE-CUT SWITCH: Each pickup is equipped with an independent single-cut switch. If the single-cut tone is poor, it is recommended that the compensation switch be used to optimize it.

• Pre-welded pickguard assembly featuring an Alnico 5 dual-coil pickup (bridge position) and two single-coil pickups (middle/neck positions). Directly replaces original Strat pickguards without additional soldering, installing in minutes.
• The dual-coil pickup delivers a thick, high-output rock tone, while the single-coil pickup maintains the crisp, bright traditional Strat sound. The versatile switching options make it suitable for a wide range of styles, from blues and rock to pop.
• Features a standard 11-hole Fender-spec cover plate with 250k potentiometers and a 5-way switch. Includes knobs and pickup covers for a complete, plug-and-play upgrade that enhances both tone and aesthetics.
