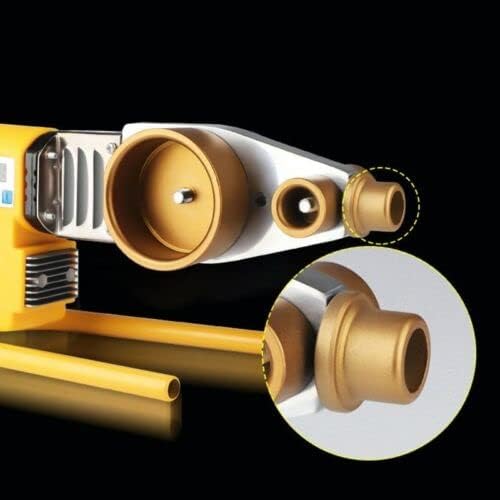

PPR/PB Pipe Welding Machine Pipe Heat Container Hydroelectric Engineering

Specifications 1. Name: Electric Welding Tool 2. Color: Yellow 3. Material: Aluminium alloy 4. Rated Power: 850W 5. Head: 20mm 25mm 32mm 40mm 50mm 63mm 6. Voltage range: AC 220V 50 ± 1hz 7. Heating head temperature: 320 ± 5 ℃ 8. Safety indicators: insulation resistance of not less than 1MΩ 9. Leakage current: ≤5mA (AC rms) Features For welding plastic pipes such as PP / PPR / PB / PE / PP-C pipe and etc. Designed for long time use. Non-slip handle, comfortable to grab. Ideal for pipeline construction equipment. Manganese steel panel, fast heat conduction. Thick gold paint touch head, hot melt fast heating. Instruction 1. Install the heatsink on the fixed welding device, place the welding device on the rack, install the corresponding heating die according to the required pipe specifications, and use the hexagon to tighten, usually small in the front end in the back. 2. Power on: power on (pay attention to the power must be with a ground protection line), the green indicator light, until the green light is off, the red light is on, indicating that the fuse into the automatic temperature control state, you can start operation. Note: In the automatic temperature control state, red light, green light will be alternately lit, indicating that the fuse is in a controlled state, does not affect the operation. Package Included 1 x Pipe Welding Machine 6 x 20mm 25mm 32mm 40mm 50mm 63mm Welding Heads 3 x Fasten Screw 1 x Inner Hexagon Spanner 1 x Support Shelf 1 x Iron Box

• PPR/PB Pipe Welding: This machine is specifically designed for welding PPR (Polypropylene Random) and PB (Polybutylene) pipes, providing a reliable and efficient method for joining pipes in hydroelectric engineering projects.
• Pipe Heat Container: The machine is equipped with a pipe heat container, which ensures that the pipes are heated evenly and at the correct temperature for welding, resulting in strong and durable joints.
• Hydroelectric Engineering: This welding machine is suitable for use in hydroelectric engineering projects, where the pipes are often subjected to high pressure and need to withstand extreme conditions.
• Easy to Use: With its user-friendly controls and ergonomic design, this welding machine is easy to operate, requiring minimal training or expertise.
• Reliable and Efficient: The machine provides reliable and efficient welding, ensuring secure and leak-free connections between PPR and PB pipes in hydroelectric engineering applications.
