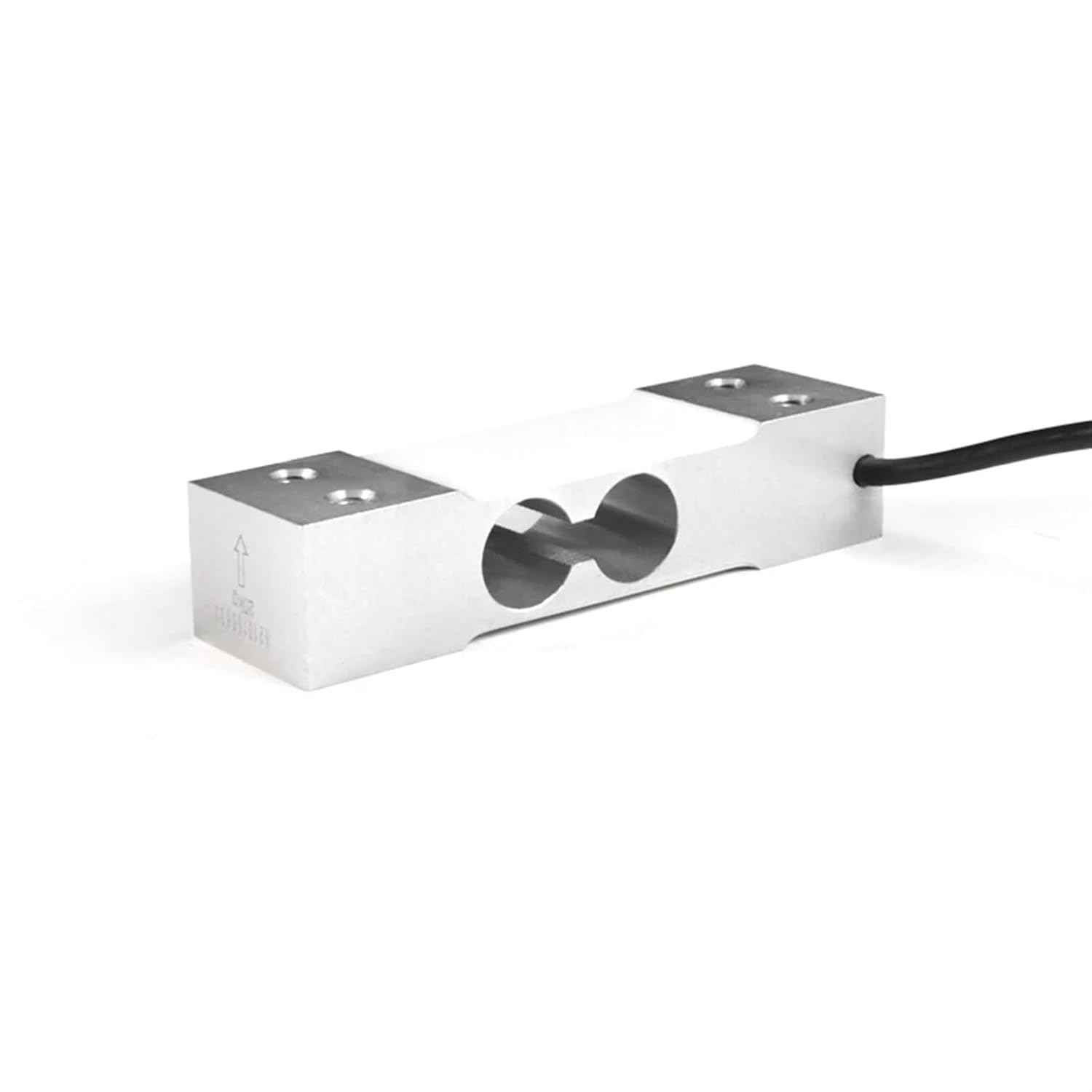

Single Point Load Cell T100 Cantilever Weighing Sensor Strain Pressure for Electronic Computing Scales Shear Beam Load(5KG)
Product details
| Management number | 210901053 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 210901053 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SwitchesHign-concerned Chemical : is_customized : YesTheory : Resistance SensorUsage : Pressure SensorMaterial : MetalType : Magnetic SensorOutput : Analog SensorOrigin : Mainland Type : Load Cell/Force SensorOrigin : Mainland Sensitivity : 2.0±0.0157mV/VTemperature coefficient of zero : 0.03%F.SOutput temperature coefficient : 0.03%F.SRelative creep over 30 min : 0.02%F.STemp. influence on sensitivity : 0.0175%F.S/10Temp. influence on the zero signal : 0.02%F.S/10Zero output : 1.0%FSInput resistance : 406± 6Output resistance : 350± 3Insulation resistance : >5000 MOperating temperature range : -20~+60Safe Load Limited : 120%F.SMaterial : Alloy Steellevel of protection : IP65
- Switches
- Single Point Load Cell T100 Cantilever Weighing Sensor Strain Pressure For Electronic Computing Scales Shear Beam Load
| Department | unisex-adult |
|---|---|
| Item Weight | 1.76 ounces |
| Manufacturer | BNCZDOJO |
| Item model number | BNCZDOJO |
| Product Dimensions | 0.39 x 0.39 x 0.39 inches |
