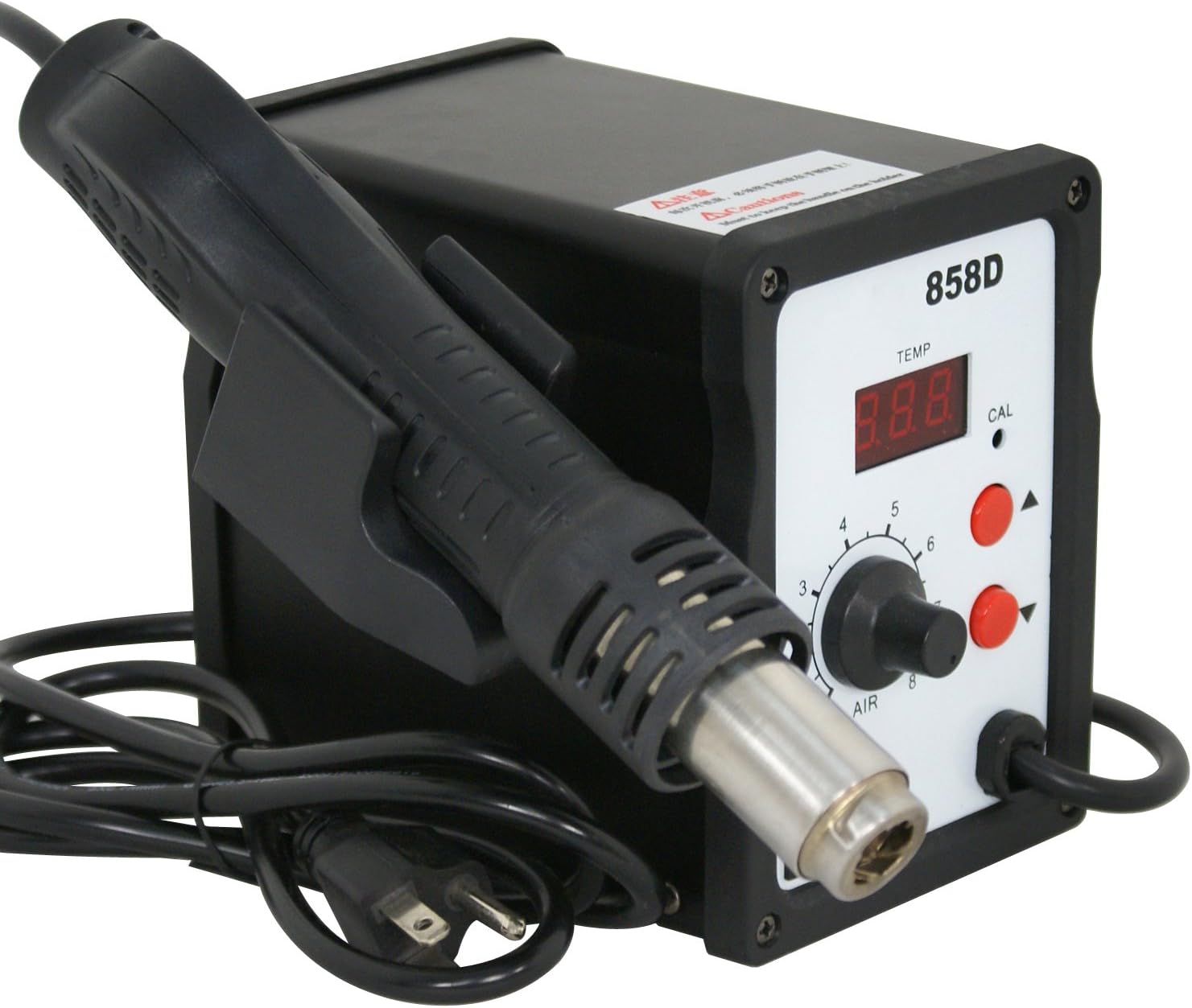

Smartxchoices 858D Hot Air Rework Station Digital SMD Soldering Station Kit Desoldering Welder W/Accessories (858D)

Features: 1. Comfortable and portable handheld and the Digital LED display. 2. Adjust the air flow and temperature control keypad. 3. Refer to the instructions included with three kinds of nozzles (big,medium and small) replacement part. 4. Intelligent system that could alarm, Fault detection automatically. 5. Automatic cooling function of the system will prolong the life of heating element, and protect the hot air gun. Operation Instruction: 1. To put the unsoldering equipment ready, and leave handle on the holder 2. To connect the power 3. To set the blast nozzle (large caliber nozzle preferred). 4. To switch on the power, the screen display"-",it represents standby model (Available in microcomputer with digital LED) 5. To press▲or▼ button (revolving switch )as to set up the temperature. （Available in microcomputer with digital LED) 6. To turn the temperature switch as to set up the required temperature. (Available in luminous discharge tube display indication 7. To hold the handle, so the equipment begin to heat. To adjust the revolving switch of airflow in order to select suitable airflow, and begin to operate normally while the temperature is table. 8. To put back the handle on the holder after the work; meanwhile,the unsoldering equipment switch from heating mode to cooling heating element mode automatically. while the temperature is lower than 100C,the screen displays"-" it stands for switching to standby mode,and after the temperature of heating element is less than 70C,the equipment is on standby. 9. To switch off the power unplug if there is no operation for a long period of time. Package Content: 1x 858D SMD Hot Air Rework Station 1x Hot air Gun and holder 3x Nozzles(5mm,8mm,10mm) 1x IC extractor 1x Manual

• Operating Voltage: 110V; Output Power:700W
• Type of Pump & Airflow: Brushless fan with soft air; Noise: Less than 45dB
• Temperature Range: 100 ℃ to 480 ℃
• Air Flow: Max. 120L/min; Component Length of Handle: ≦120cm
• Display: Digital LED; When the temperature is less than 70 degree, can stop rotation automatically.
