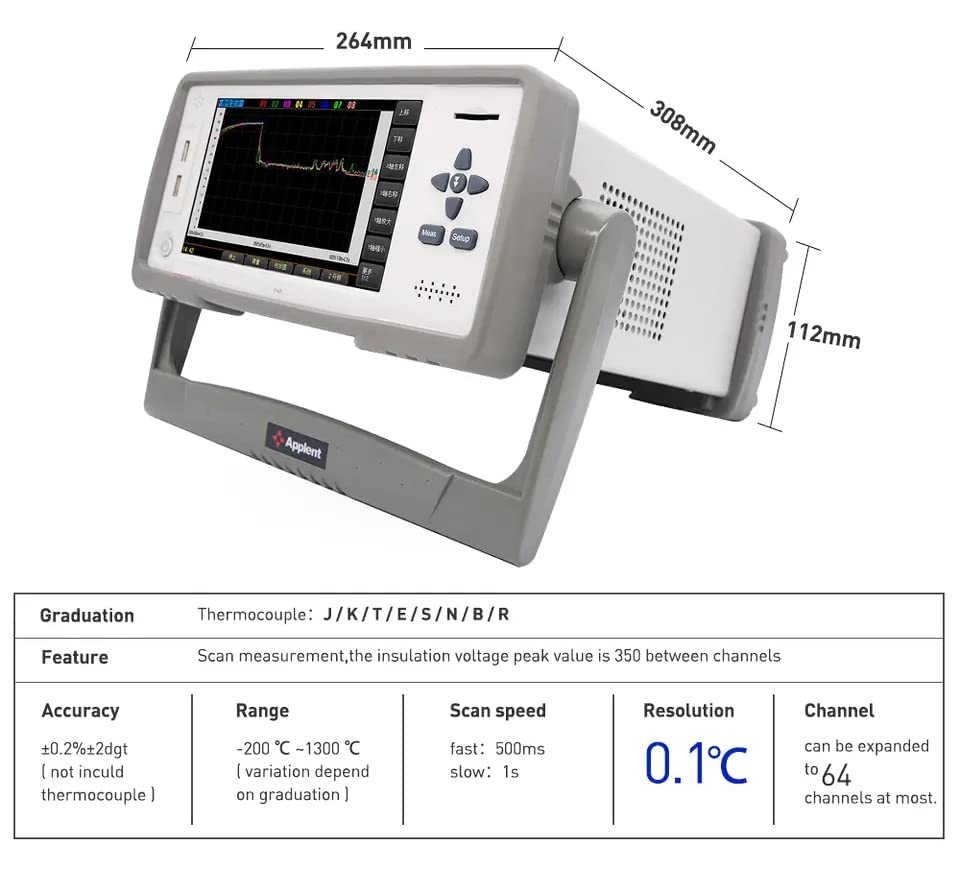

Temperature Meter Tester 56 Channel Thermocouple Thermometer Temperature Measurement Instrument with Accuracy 0.2%+1℃ Resolution 0.1℃ 7 inches TFT True Color LCD Display

YFYIQI Temperature Meter Tester 56 Channel Thermocouple Thermometer Temperature Measurement Instrument with Accuracy 0.2%+1℃ Resolution 0.1℃ 7 inches TFT True Color LCD Display Feature: 7 inches TFT true color LCD display Histogram display, graph Highest value, lowest value, average value display Cold junction compensation Standard USB disk interface, support for large-capacity storage devices. Standard RS232C interface and USB interface Automatic detection of broken couple Specified channel scan Standard data acquisition software Specification: Graduation:Thermocouple:J/K/T/E/S/N/B/R Accuracy:0.2%+1℃ Range:-20℃~200℃Resolution:0.1℃ Channels:56 channels; Speed:All channels: 1 times/s Correction:Error correction for each channel Comparator:high & low beep function for each channel Interface:RS232C, U-disc, USB Software:ATS45 data acquisition software Cold Junction:Accuracy: 0.5℃ Other Functions:TFT-LCD True color display, broken thermocouple check function Power Supply:V: 85VAC～260VAC Fre：50Hz/60Hz Power：10VA Dimension & Weight:216x88x300mm weight：3kg Accessories:K thermocouple 56channels (2 meters/ channel) Application: Suitable for multi-point temperature testing of manufacturers and quality inspection departments in home appliances, motors, electric appliances, thermostats, transformers, ovens, thermal protectors, power supplies, lighting, electric power, LED, etc.

• The multi-channel temperature tester with high-performance ARM microprocessor control, 7-inch color LCD display, touch screen operation, easy to view temperature values, temperature changes Curves, histograms, etc., can collect multi-channel temperature data at the same time, super-super alarm and communication transmission,
• It can collect 56-channel temperature data, compatible with K/N/E/J/T/R/S/B Type thermocouple, fast response, stable data, and fault detection. Each channel can be set individually and independently corrected.
• The instrument supports USB communication, and data acquisition, analysis and printing can be realized through the standard computer software.
• Support USB disk storage for real-time storage of sampled data. Users can independently correct each data.
• It uses fully isolated digital and analog signals, ## (can be tested for live (isolated voltage 230V rms, 330VDC), safe and reliable.
