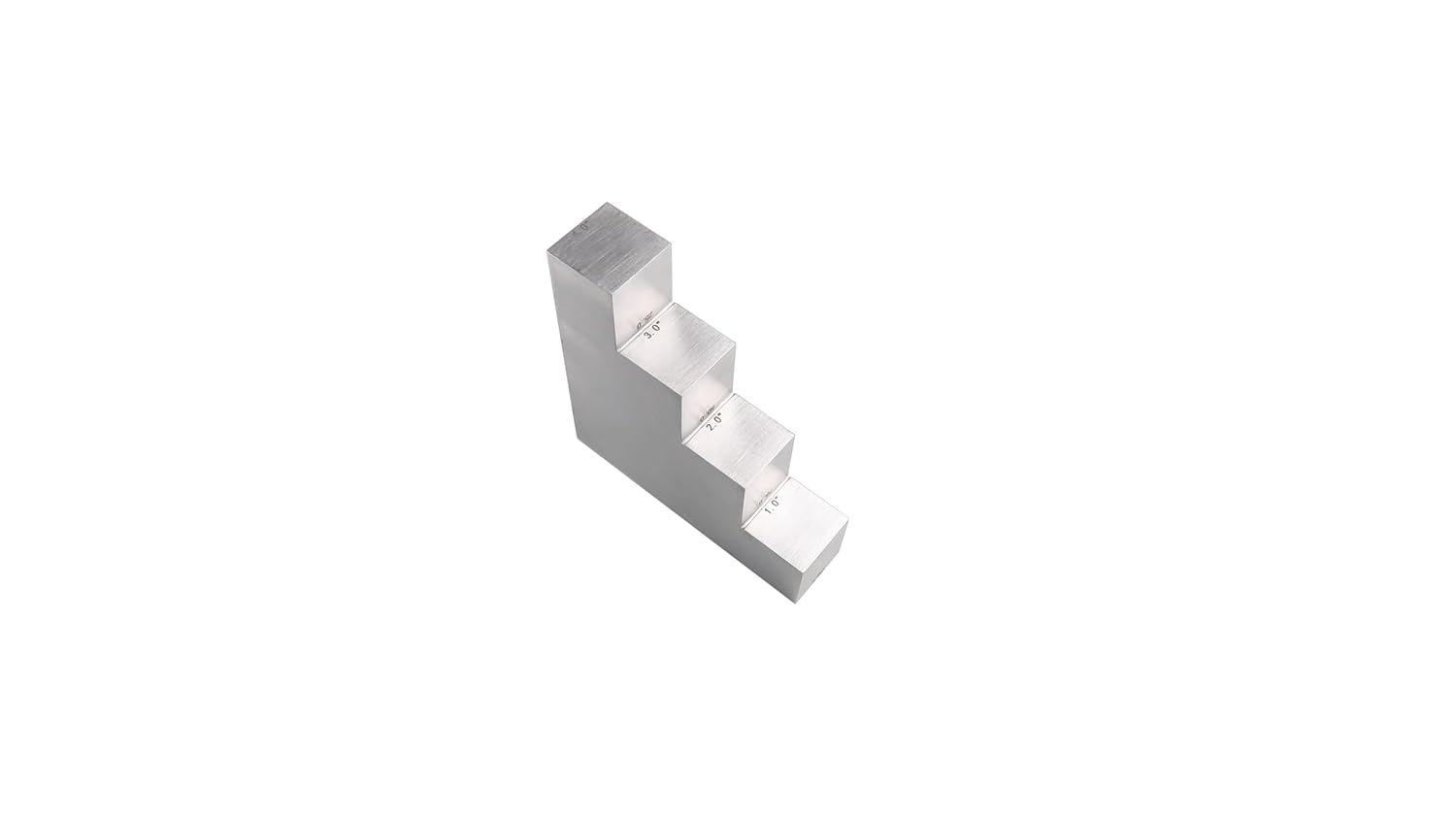

Tipsy Step Calibration Block ultrasonic Thickness 4 Step Test Block NDT Calibration with ABS Carrying case and Certificate (MM/INCH 25,50,75,100&1.0,2.0,3.0,4.0)
Product details
| Management number | 210928930 | Release Date | 2026/04/04 | List Price | $78.00 | Model Number | 210928930 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Tipsy Step BlockSpecial Step Block for thickness and linearity calibration.This versatile block contains eight (8) steps. Set it down on one side and get the 1.0, 2.0, 3.0 and 4.0" steps. Then "Tip" it over and get the 1.5, 2.5, 3.5, and 4.5" steps. Step faces measures 1.00" x 1.00". Manufactured in accordance with TMTeck drawing . Step thickness tolerance is ±0.002".Metric version with steps measuring 25.0, 37.5, 50.0, 62.5, 75.0, 87.5, 100.0, and 112.5mm also available. Step facesnon metric block measure 25.0mm x 25.0mm. Our new Universal Tipsy Block design combines both measurement scales on one handy block. Stand it up to calibrate on the 1.0, 2.0, 3.0, and 4.0" thicknesses; then "Tip" it over to get the 25.0, 50.0, 75.0, and 100.0 mm steps
- 1018 steel
- 3 different types available
- TMTECK high quality
- Come with carrying case and factory certificate
- Special Tipsy Step Block for thickness and linearity calibration
| Manufacturer | TMTECK |
|---|---|
| Item model number | MM/INCH 25,50,75,100&1.0,2.0,3.0,4.0 |
