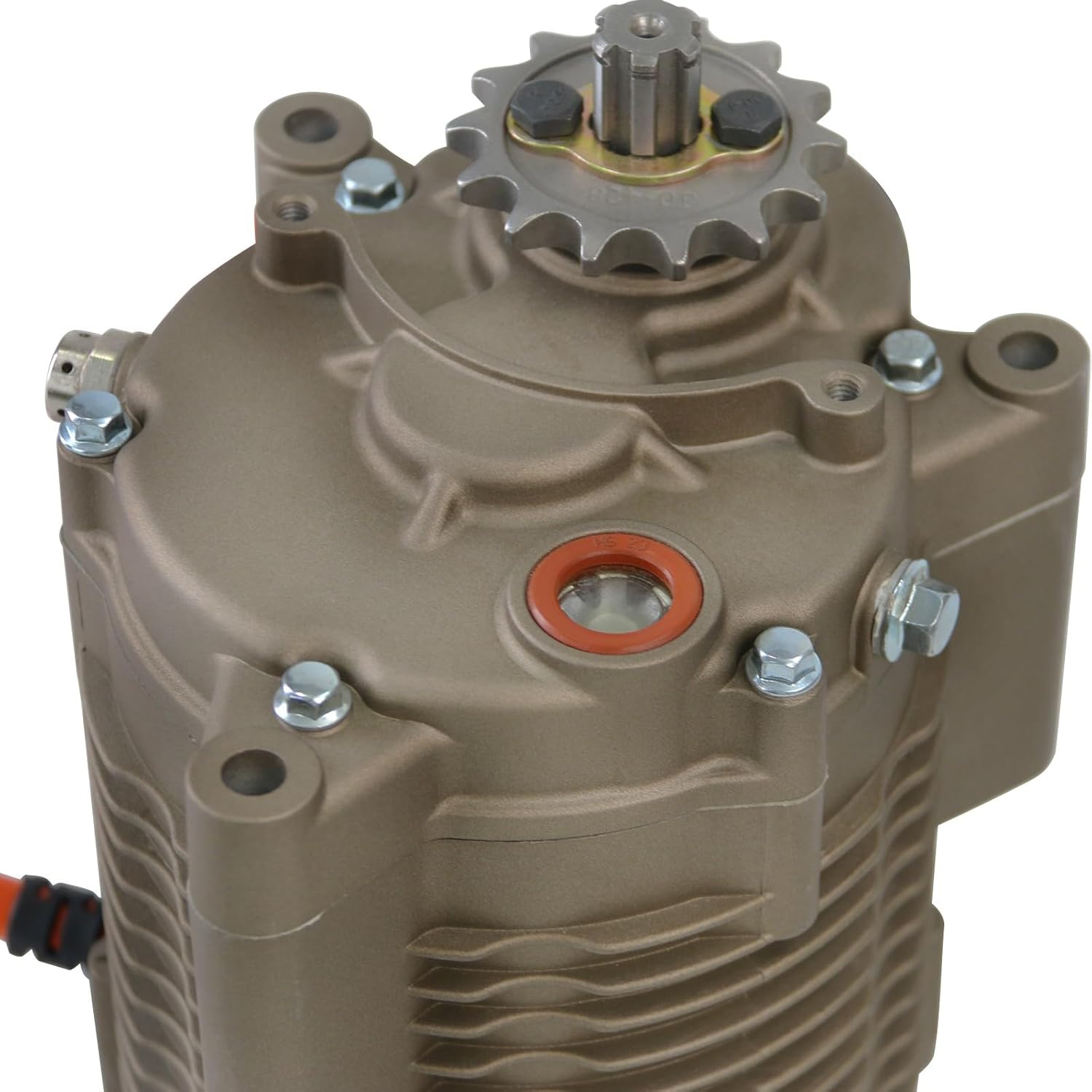

ZARKO 72V 1000W Brushless DC Motor with Gearbox and Speed Controller, 428-15T Sprocket, Regenerative Brake, Sine Wave Controller for Electric Dirt Bike Go Kart ATV Quad Drift Trike Scooter E-Bike

Product Features and SpecificationsRated Voltage: 72VRated Power: 1000WPeak Current Output: 2500WSpeed Range: 4200–4500 RPMGear Sprocket: 428 chain, 15 toothGear Ratio: 2.85Controller Type: 24-tube sine wave, 38–40AOperation Modes: Economic mode, Sport modeUnder-Voltage Cutoff: 62VMax Load Capacity: 2000 lbs (907 kg)Brake Function: Regenerative energy recoveryTerminal Torque: 120 N·mCondition: High-speed default brake responseInstallation Orientation: Universal EV chassis mountingKey FeaturesEfficient 72V High-Output Brushless MotorDesigned to deliver strong torque and responsive acceleration with minimal heat buildup and lower energy loss.Integrated Gearbox Power DeliveryImproves torque multiplication for steep inclines and rapid throttle response in heavier electric vehicle builds.Regenerative Brake Energy RecoveryConverts deceleration energy into battery recharge, extending usable range and improving system efficiency.Sine Wave Controller SmoothnessProvides quiet operation, refined throttle modulation, reduced vibration, and improved motor lifespan.Economic Mode and Sport ModeAllows users to conserve battery life or unleash stronger acceleration depending on riding preference.CompatibilityIdeal for:Electric Dirt Pit BikesDrift Trikes and Three-Wheel EVsGo Karts and BuggiesMini MotorcyclesUtility ScootersGolf CartsATVs and QuadsRazor-type EV buildsE-Bike and Light EV ConversionsCompatible where:428 chain drive systems exist72V battery packs are supportedChassis frame clearance allows mountingPerfect for DIY:Garage buildersHobby EV moddersPerformance upgrade projectsPackage Includes1 × 72V 1000W Brushless DC Motor (with gearbox)1 × 24-Tube Sine Wave ControllerNOTEPlease confirm sprocket alignment, frame clearance, chain type, mounting plate positions, gear ratio compatibility, controller amperage, and battery system voltage with the dimensions chart before ordering. Fitment varies based on custom chassis configurations. To ensure proper wiring, safety, and torque calibration, installation by a qualified technician or experienced EV builder is strongly recommended.

• High-output 72V 1000W brushless DC motor and sine wave controller kit engineered for electrifying dirt bikes, go karts, golf carts, drift trikes, quads, scooters, and lightweight motorcycle projects.
• Integrated gearbox system delivers smooth torque multiplication and improved acceleration response, supporting up to 2000 lbs (907 kg) vehicle load capacity for utility or performance EV builds.
• Advanced sine wave controller reduces noise, enhances throttle sensitivity, and improves motor longevity while offering both economic cruising mode and sport acceleration mode for customized riding.
• Regenerative braking capability converts kinetic energy into battery recharge, providing increased range, enhanced braking control, improved sustainability, and higher system efficiency.
• High-speed performance range of 4200–4500 RPM with a 428-15T sprocket and 2.85 gear ratio, ideal for hill climbing, quick acceleration, and multi-terrain EV configurations.
